CTG8B

Item No.: CTG8B(4g)

CTG8 is a high performance thermal paste(also known as thermal conductive silicone grease or thermal compound), which is mainly used in computer CPU chips. After years of market trials, 12.8W/m.k thermal conductivity, good operability, long service life,

CTG8_Thermal grease—TDSDownload
CTG8-Thermal paste-MSDS2024Download
2024 MAXTOR ROHS-Thermal Grease（EN）Download
2024 MAXTOR Thermal Grease - Air Freight reportDownload
2024 MAXTOR Thermal grease -Shipping ReportDownload

INQUIRY

PDF Format

Buy At Amazon Buy At AliExpress Buy At Alibaba

Description

Introduction

Thermal grease is kind of uniform pasty substance which composes thermally conductive filler,high-temperature synthetic oil,stabilizer and additive. The color is white and grey . It is used in the place between the heating element and cooling device.The radiator needs mechanical immobilization.The obviously advantage is its price and easy to repair.It can wet the heat sink and the device surface,reduce the thermal resistance contacting,so its suitable for large power cooling device.

Technical Specification

Model	Color	Conductivity (W/m-k)	Density (g/ml)	Vicosity （mPa.s）	Thermal Impendance ( ℃-in²/W )	Electrically Conductive	Operating Temperature (℃)	Package
CTG8	Grey	12.8	2.8	85000	0.112	No	-50~250	Negotiable

Testing Result

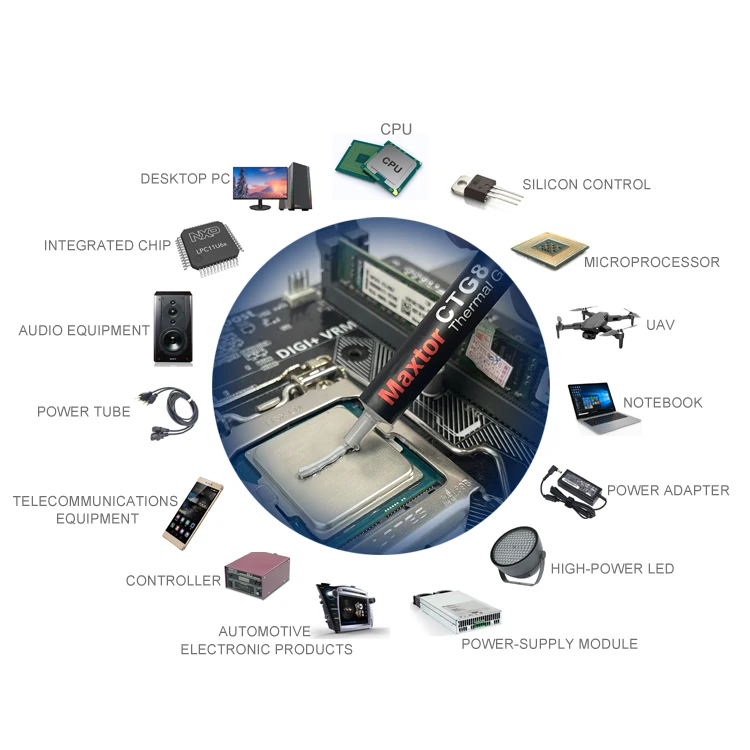

Application
PC laptop devices,especially high heat CPU and GPU,It can also be used on high-end desktops,workstations,serversIndustrial computer and performance player toaster heat dissipation.
① It is widely used in various electronic products, and the contact surface between the heating element and the heat radiating device in the electrical equipment
② It is used in the contact surface between the radiator of the LED lamp and the PCB. Suitable for SMD and COB lamp
③ CPU, power amplifier, thermistor, power module, etc.

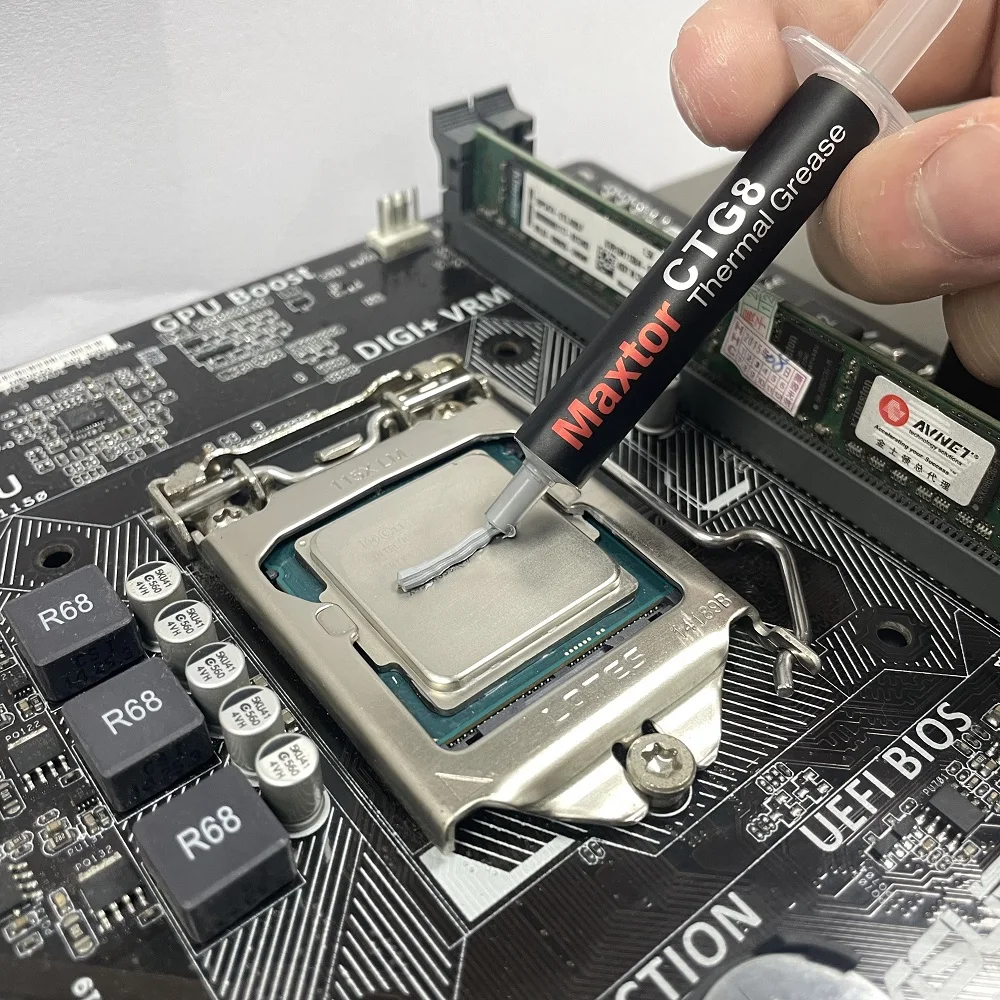

Using Guide

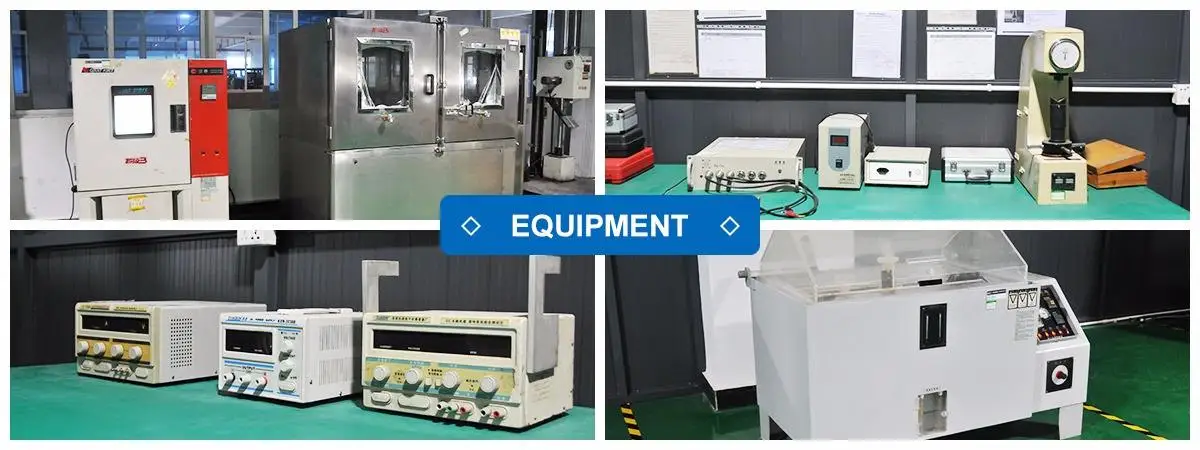

Performance Testing Machine

Caution

① Please note that the thickness of the thermal grease will affect the efficiency of heat conduction, so please coat moderate quantity on the objects surface., and the thinner, the better
② Keep away from children
③ If contact with the skin, wipe clean, and then rinse with water; if contact with eyes, immediately wash with water, and go to the hospital to check

Packing

① Syringe
② MIni Bag
③ Glass bottle or Plastic bottle
Customized special package

Storage And Transport

① This product should be stored in a dry, cool place, avoid rain, sun exposure, storage period of 24 months（25℃）. During storage,a small amount of silicone oil may outflow, and this is a normal state, does not affect the use of results. If necessary, should be used after mixing evenly.
② Such products are non hazardous and can be transported in general chemicals
